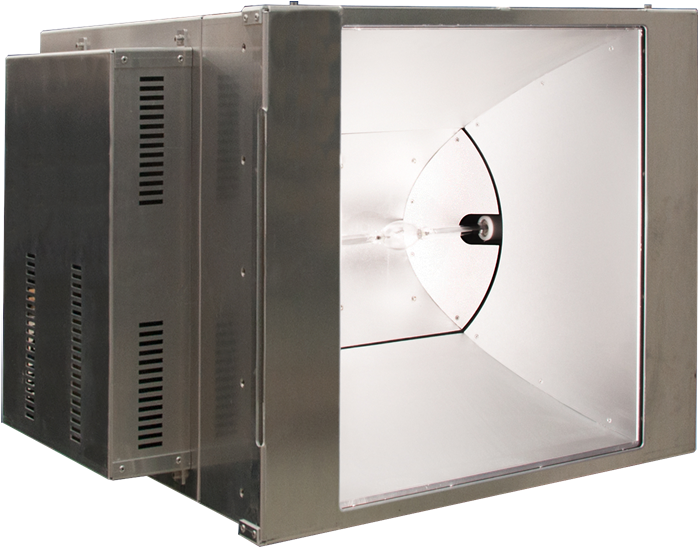

SolarConstant MHG MIL

Atlas SolarConstant MIL has been specially designed for diurnal solar cycling according to the US military standard MIL-STD-810G Test Method 505.5 Solar Radiation (Procedure I).

  • Overview +

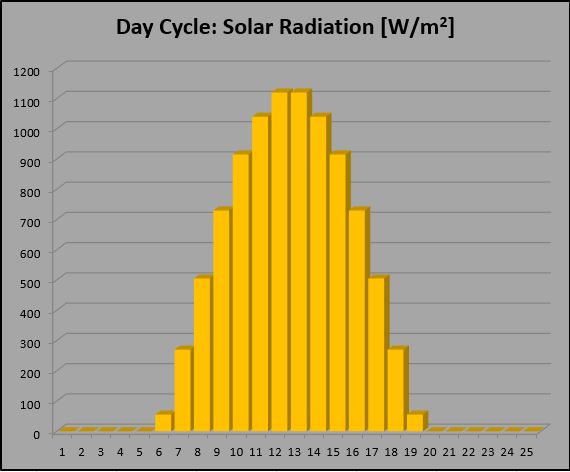

    SolarConstant MIL utilizes unique multi-lamp concept making it ideal for solar diurnal cycling as defined in MIL-STD-810G, Test Method 505.5 Solar Radiation (Procedure I).) - determination of heat produced by 24-hour cycles of solar radiation.

    Also other industries such as agricultural science for plant growth studies make use of diurnal cycling.

  • Features +

    • Special design for diurnal cycling
    • Optical outdoor filter
    • Meets standard MIL-STD-810G

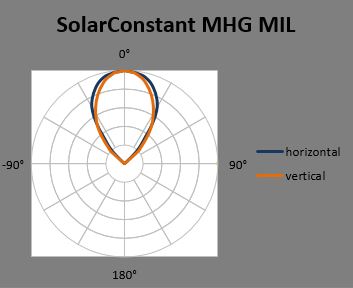

    • Wide, symmetric beam angle for high-uniformity solutions
    • Modular design for customized system arrays of any size
  • Technical Information +

    Technical Information SolarConstant MIL
    Multiple MHG lamps in a rotating selector
    Global radiation similar CIE 85 (Tab. 4)
    Outdoor Filter:
    UV cut-on at approximately 290 nm
    Average lamp lifetime:
    750 h
    Dimensions (W x H x D):
    524 mm x 680 mm x 830 mm
    50 kg
