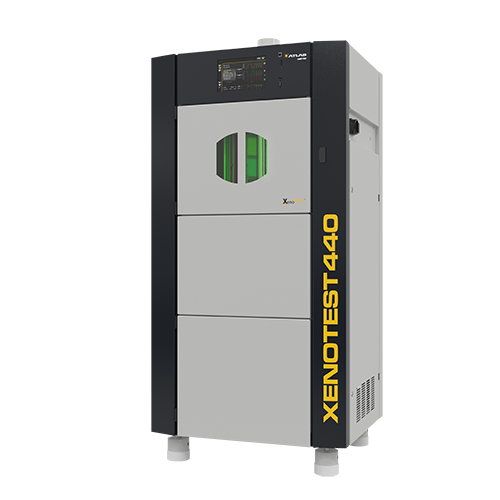

Xenotest 440

  • Overview +


    The Xenotest 440 is a highly versatile xenon weathering instrument for a variety of materials. Designed for fast and economical testing, the Xenotest 440 utilizes XenoLogic™, a revolutionary new twin-lamp operating technology which enables high irradiance levels of 120 W/m2 of total UV radiation. In addition, XenoLogic provides extended lamp service life. With this new technology, the two xenon lamps combined can last over 4000 hours under standard testing levels of 40-60 W/m2.

  • Features +


    • 2 x 2200W air-cooled xenon lamps
    • 2310 cm2 exposure area
    • XenoLogicTM lamp operating technology for extended lamp service life
    • Touch screen with color display to monitor and display test parameters
    • Direct Setting and Control of Irradiance (300-400 nm)
    • Direct Setting and Control of Black Standard Temperature (BST)
    • Direct Setting and Control of Chamber Temperature (CHT)
    • Direct Setting and Control of Relative Humidity
    • Display of Diagnostic Messages
    • Storage for 10 user-defined tests
    • Multi-Language Capability: English, German, Italian, French, Spanish, Turkish, Dutch, Polish, Hungarian, Czech, Japanese, Korean, Chinese
    • On-rack XENOSENSIV® RC-300-400 BST for measuring and controlling irradiance (in W/m²) in the wavelength range 300-400 nm and BST (°C) on specimen level
    • Selectable temperature control either by Chamber Temperature (up to 65 °C) or by Dual Control: Chamber Temperature and Black Standard Temperature (up to 115 °C) simultaneously
    • Fan-controlled temperature difference between BST and CHT
    • Ultrasonic humidifier controlling relative humidity in the range 10-75% (Light cycle)
    • Integrated 60 litre water reservoir for humidity control and specimen spray (automatic refill)
    • Specimen spray system
    • Rotating specimen rack with 38 test positions (13.5 cm x 4.5 cm); 33 (10.0 cm x 6.8 cm); 22 (13.5 cm x 5.5 cm); 11 (29.5 cm x 7.0 cm)
    • Pre-programmed lightfastness and weathering standards
    • Outer cylinder made of special UV glass
    • UV-protected test chamber window
    • Internal memory chip for storing instrument data
    • Data output via Memory Card or serial interface RS232
    • Ethernet interface for XenoTouch Add-ons (Remote Control, E-Mail Service, Online Monitoring)

  • Options +


    • XenoCal WST White Standard Thermometer
    • XenoCal BST Black Standard Thermometer
    • XENOSENSIV RC-420 BPT
    • XENOSENSIV RC-340 BPT
    • XenoCal BB 300-400 Irradiance Sensor
    • XenoCal NB 340 Irradiance Sensor

  • Accessories +


    • ISO 105-B02 Application Kit
    • AATCC TM16.3 Application Kit
    • Right Light Filter System (non-aging high-fidelity Daylight filter to simulate outdoor testing; Daylight Type I)
    • XENOCHROME® 300 Filter system (non-aging Daylight filter system to simulate outdoor testing; Daylight Type II)
    • XENOCHROME® 300 ext. IR Filter system (non-aging Daylight filter system to simulate outdoor testing; Daylight Type II; for standards requiring higher temperatures)
    • Daylight Filter System (filter with UV cut-on at 300 nm to simulate outdoor testing)
    • XENOCHROME 320 (filter with UV cut-on at 320 nm to simulate testing behind window glass)
    • XENOCHROME 320 ext. IR (filter with UV cut-on at 320nm to simulate hot lightfastness testing)
    • Filter System TM16 (filter to meet requirements of AATCC TM16.3)
    • Specialized specimen holder sets with multiple segments
    • XenoTouch Add-ons; Remote Control, E-Mail Service, Online Monitoring

  • Standards +


    The listed standards and specifications may include several alternative testing options. The instrument meets at least one option in any listed standard. Standards are subject to change without notification, which may result in a change in testing technology. Always check the revision status of a standard with the responsible Standards Development Organization. If unsure about instrument compliance, please contact your local sales representative.

    • AATCC TM16-2004
      • Colorfastness to Light
    • AATCC TM16.3
      • Colorfastness to Light
    • ASTM D2565
      • Standard Practice for Xenon Arc Exposure of Plastics Intended for Outdoor Applications
    • ASTM D7869
      • Standard Practice for Xenon Arc Exposure Test with Enhanced Light and Water Exposure for Transportation Coatings
    • ASTM G151
      • Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
    • ASTM G155
      • Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials
    • GB/T 8427
      • Textiles - Tests for color fastness - Color fastness to artificial light: Xenon arc fading lamp test
    • GB/T 8814
      • Unplasticized polyvinyl chloride (PVC-U) profiles for the frames of doors and windows
    • GB/T 16259
      • Test method for accelerated weathering of building materials
    • IEC 60068-2-5
      Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation testing and weathering
    • ISO 105-B02
      • Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
    • ISO 105-B04
      • Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test
    • ISO 105-B06
      • Textiles - Tests for colour fastness - Part B06: Colour fastness and ageing to artificial light at high temperatures: Xenon arc fading lamp test
    • ISO 105-B10
      • Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation
    • ISO 11341
      • Paints and Varnishes - Artificial Weathering and Exposure to Artificial Radiation - Exposure to Filtered Xenon-Arc Radiation
    • ISO 16474-2
      • Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
    • ISO 4892-2
      • Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources
    • VDA 75202
      • Automotive interior materials - Colorfastness and ageing test against light at high temperatures: Xenon arc
    • VW PV 1303
      • Non-Metallic Materials - Lightfastness Test for Interior Parts
    • VW PV 3929
      • Non-Metallic Materials - Weather Ageing in Dry, Hot Climate
    • VW PV 3930
      • Non-Metallic Materials - Weathering in Moist, Hot Climate

  • Downloads +


  • Software +


    Download software (XenoSoft)

  • Applications +


  • Videos +

    • Atlas Xenotest Family

  • Recorded Online Seminars +


    Weathering, Lightfastness, and Photostability Testing with Xenotest - Atlas Online Seminar


    Xenon-Arc Technology and Application – Atlas Online Seminar


    Xenon-arc and Fluorescent/UV - Comparison and Applications - Atlas Online Seminar


    Setups for Common Weathering Tests - Atlas Online Seminar



    Different Xenon-arc Weathering Instruments – Applications and Limitations - Atlas Online Seminar
