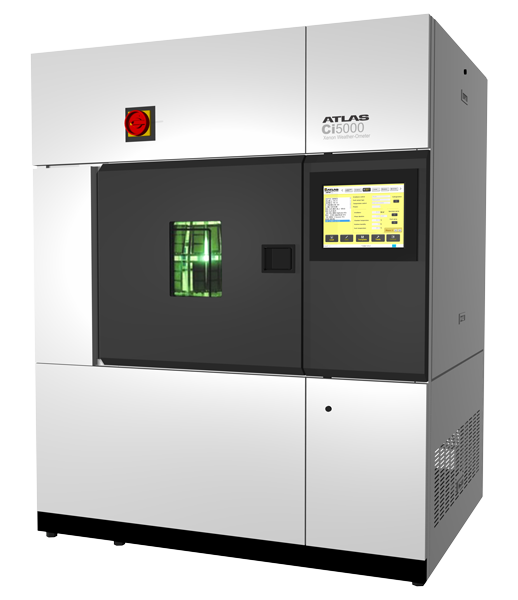

Ci5000 Weather-Ometer

  • Overview +



    The Ci5000, with its advanced digital control system, represents a monumental achievement in applying digital and optical technologies in an easy-to-use laboratory weathering instrument. The Ci5000 is approved by many OEMs in the automotive, paints & coatings and plastics industries as the exclusive platform to deliver accurate, reproducible and repeatable results for predicting service life. The Ci5000 has been certified CE, UL, CSA, ISO and EN compliant.

  • Features +


    • 12000 W water cooled xenon arc lamp system
    • Total exposure area: 11,000 cm2 (1,705 in2)
    • 3-tier inclined specimen rack
    • TFT full color 12" touch screen control panel display of all test parameters
    • Direct Setting and control of Irradiance: 340nm, 420nm, 300-400nm or Lux
    • Direct setting and control of Black Panel Temperature; uninsulated (BPT) or insulated (BST)
    • Direct Setting and control of relative humidity
    • Direct setting and control of specimen chamber air temperature
    • Display of diagnostic messages
    • 14 factory pre-programmed test methods
    • Space for 12 custom programs; sub-cycle capability
    • Multi-Language capability (English, French, German, Spanish, Japanese, Chinese, Korean, Turkish)
    • Streaming data output via ethernet or USB port. USB thumb drive included
    • Smart DamperTM to reduce rest variability in chamber temperature and humidity and compensate for changes in ambient lab conditions
    • SmartLight MonitorTM verifies that correct light capsule is installed
    • Specimen and rack spray
    • Filter combinations available to meet all common test methods
    • Air intake dust filter
    • CS-7 xenon lamp cooling system
    • Water purity indicator with alarm
    • Calibrated xenon reference lamp
    • Chamber viewing window in door
    • Universal electrical configurations to meet local frequency, voltage and electrical requirements
    • Meets CE, UL, ISO EN and CSA safety requirements
    • Automatic test countdown based on time or radiant exposure
    • Specimen Holders available to accommodate many sample types
    • VibraSonicTM Humidification System

    Contact us today to see how we can help you get the most from your weathering tests and processes.

  • Options +


    • Dual Black Panel Temperature (BPT) and Black Standard Temperature (BST) Measurement/Control including uninsulated BPT and BST sensors
    • Monitoring of second wavelength 300-400 nm, 340 nm, 420 nm, or Lux
    • S3T Specific Specimen Surface Temperature system
    • WXView II Data Acquisition System - Web-based application to allow users to securely access instruments connected to their company network, download archived files, and other functionality
    • High Irradiance capabilities available with custom rack designs (Ci5000 HE)

  • Accessories +


    • XenoCal irradiance calibration device for independent irradiance calibration and measurement at the sample plane
    • Auxiliary filter lantern for meeting special automotive interior and textile test requirements
    • LiquiAirTM self contained xenon lamp cooling system (top or wall mount available)
    • Leg Extensions (6 legs: elevates unit 15 cm)
    • Lockable latch for chamber door

  • Standards +


    The listed standards and specifications may include several alternative testing options. The instrument meets at least one option in any listed standard. Standards are subject to change without notification, which may result in a change in testing technology. Always check the revision status of a standard with the responsible Standards Development Organization. If unsure about instrument compliance, please contact your local sales representative.

    • AATCC TM16.3
      • Colorfastness to Light: Xenon-Arc
    • AATCC TM169
      • Weather Resistance of Textiles: Xenon Lamp Exposure
    • AATCC TM16E
      • Colorfastness to Light
    • ASTM C1257
      • Standard Test Method for Accelerated Weathering of Solvent-Release-Type Sealants
    • ASTM C1442
      • Standard Practice for Conducting Tests on Sealants Using Artificial Weathering Apparatus
    • ASTM C1501
      • Standard Test Method for Color Stability of Building Construction Sealants as Determined by Laboratory Accelerated Weathering Procedures
    • ASTM C1519
      • Standard Test Method for Evaluating Durability of Building Construction Sealants by Laboratory Accelerated Weathering Procedures
    • ASTM C732
      • Standard Test Method for Aging Effects of Artificial Weathering on Latex Sealants
    • ASTM C734
      • Standard Test Method for Low-Temperature Flexibility of Latex Sealants After Artificial Weathering
    • ASTM C793
      • Standard Test Method for Effects of Accelerated Weathering on Elastomeric Joint Sealants
    • ASTM D1148
      • Standard Test Method for Rubber Deterioration/Discoloration from Ultraviolet (UV) or UV/Visible Radiation and Heat Exposure of Light-Colored Surfaces
    • ASTM D1670
      • Standard Test Method for Failure End Point in Accelerated and Outdoor Weathering of Bituminous Materials
    • ASTM D2565
      • Standard Practice for Xenon Arc Exposure of Plastics Intended for Outdoor Applications
    • ASTM D3424
      • Standard Test Methods for Evaluating the Relative Lightfastness and Weatherability of Printed Matter
    • ASTM D3451
      • Standard Guide for Testing Coating Powders and Powder Coatings
    • ASTM D4101
      • Standard Specification for Polypropylene Injection and Extrusion Materials
    • ASTM D4303
      • Standard Test Methods for Lightfastness of Pigments Used in Artists' Paints
    • ASTM D4355
      • Standard Test Method for Deterioration of Geotextiles from Exposure to Ultraviolet Light and Water (Xenon-Arc Type Apparatus)
    • ASTM D4434
      • Standard Specification for Poly(Vinyl Chloride) Sheet Roofing
    • ASTM D4459
      • Standard Practice for Xenon-Arc Exposure of Plastics Intended for Indoor Applications
    • ASTM D4637
      • Standard Specification for EPDM Sheet Used in Single-Ply Roof Membrane
    • ASTM D4798
      • Standard Test Method for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Xenon-Arc Method)
    • ASTM D4811
      • Standard Specification for Nonvulcanized (Uncured) Rubber Sheet Used as Roof Flashing
    • ASTM D5010
      • Standard Guide for Testing Printing Inks and Related Materials
    • ASTM D5019
      • Standard Specification for Reinforced CSM (Chlorosulfonated Polyethylene) Sheet Used in Single-Ply Roof Membrane
    • ASTM D5071
      • Standard Practice for Exposure of Photodegradable Plastics in a Xenon Arc Apparatus
    • ASTM D5383
      • Standard Practice for Visual Determination of the Lightfastness of Art Materials by Art Technologists
    • ASTM D5398
      • Standard Practice for Visual Evaluation of the Lightfastness of Art Materials by the User
    • ASTM D5819
      • Standard Guide for Selecting Test Methods for Experimental Evaluation of Geosynthetic Durability
    • ASTM D6083
      • Standard Specification for Liquid Applied Acrylic Coating Used in Roofing
    • ASTM D6551
      • Standard Practice for Accelerated Weathering of Pressure-Sensitive Tapes by Xenon-Arc Exposure Apparatus
    • ASTM D6577
      • Standard Guide for Testing Industrial Protective Coatings
    • ASTM D6662
      • Standard Specification for Polyolefin-Based Plastic Lumber Decking Boards
    • ASTM D6695
      • Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings
    • ASTM D6878
      • Standard Specification for Thermoplastic Polyolefin Based Sheet Roofing
    • ASTM D750
      • Standard Test Method for Rubber Deterioration Using Artificial Weathering Apparatus
    • ASTM D7869
      • Standard Practice for Xenon Arc Exposure Test with Enhanced Light and Water Exposure for Transportation Coatings
    • ASTM D904
      • Standard Practice for Exposure of Adhesive Specimens to Artificial Light
    • ASTM F1164
      • Standard Test Method for Evaluation of Transparent Plastics Exposed to Accelerated Weathering Combined with Biaxial Stress
    • ASTM F1515
      • Standard Test Method for Measuring Light Stability of Resilient Flooring by Color Change
    • ASTM F2366
      • Standard Practice for Determining the Relative Lightfastness of Ink Jet Prints Exposed to Window Filtered Daylight Using a Xenon-Arc Light Apparatus
    • ASTM G151
      • Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
    • ASTM G155
      • Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials
    • FLTM BO 116-01
      • Resistance to interior weathering
    • GB/T 10485
      • Road vehicles- Lighting and light-signaling devices- Environmental endurance
    • GB/T 14522
      • Accelerated weathering test method for plastics, coatings and rubber materials used for machinery industrial products
    • GB/T 16259
      • Test method for accelerated weathering of building materials
    • GB/T 16422
      • Plastics -- Methods of exposure to laboratory light sources -Part 2: Xenon-arc lamps
    • GB/T 16991
      • Textiles--Test for color fastness--Color fastness and ageing to artificial light at high temperatures: Xenon-arc
    • GB/T 1865
      • Paints and varnishes--Artificial weathering and exposure to artificial radiation—Exposure to filtered xenon- arc radiation
    • GB/T 18833
      • Retro-reflective sheeting for road traffic signs
    • GB/T 29061
      • Performance films for glass in buildings
    • GB/T 32088
      • Accelerated weathering test methods of automotive nonmetallic components and materials using a xenon-arc apparatus
    • GB/T 3511
      • Rubber, vulcanized- Test method for resistance to artificial weathering (xenon-arc)
    • GB/T 5137
      • Automotive safety glass test method
    • GB/T 6151
      • Textiles-Tests for color fastness-General principle of testing
    • GB/T 8427
      • Textiles - Tests for color fastness - Color fastness to artificial light: Xenon arc fading lamp test
    • GB/T 8430
      • Textiles - Tests for color fastness to artificial weathering - Xenon-arc fading lamp test
    • GM 9125P
      • Procedures for Laboratory Accelerated Exposure of Automotive Materials
    • GME 60292
      • Designation of Color Fastness and Resistance to Artificial Light
    • GMW 14162
      • Colorfastness to Artificial Weathering
    • GMW 14170
      • Coating Requirements for Elastomeric Seals
    • GMW 14650
      • Performance Requirements for Exterior Plastic Parts
    • GMW 3414
      • Test Method for Artificial Weathering of Automotive Interior Trim Materials
    • Hyundai MS 210-05
      • Molded Plastic Parts - Interior Use
    • Hyundai MS 300-32
      • Standard Test Method - Woven, Knit
    • IEC 60068-2-5
      • Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation testing and weathering
    • IEC 61345
      • UV test for photovoltaic (PV) modules
    • ISO 105-B02
      • Textiles - Tests for Colorfastness - Part B02: Colorfastness to artificial light: Xenon arc fading lamp test
    • ISO 105-B04
      • Textiles - Tests for Colorfastness - Part B04: Colorfastness to weathering: Xenon arc test
    • ISO 105-B06
      • Textiles - Tests for Colorfastness - Part B06: Colorfastness and ageing to artificial light at high temperatures: Xenon arc fading lamp test
    • ISO 105-B07
      • Textiles - Tests for Colorfastness - Part B07: Colorfastness to Light of Textiles Wetted with Artificial Perspiration
    • ISO 105-B10
      • Textiles - Tests for Colorfastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation
    • ISO 11341
      • Paints and Varnishes - Artificial Weathering and Exposure to Artificial Radiation - Exposure to Filtered Xenon-Arc Radiation
    • ISO 12040
      • Graphic technology - Prints and printing inks - Assessment of light fastness using filtered xenon arc light
    • ISO 16474-1
      • Paints and varnishes - Methods of exposure to laboratory light sources - Part 1: General guidance
    • ISO 16474-2
      • Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
    • ISO 18909
      • Photography - Processed photographic colour films and paper prints - Methods for measuring image stability
    • ISO 18930
      • Imaging materials - Pictorial color reflection prints - Methods for evaluating image stability under outdoor conditions
    • ISO 18937
      • Imaging materials - Photographic reflection prints - Methods for measuring indoor light stability
    • ISO 29664
      • Plastics - Artificial Weathering Including Acidic Deposition
    • ISO 3917
      • Road vehicles - Safety glazing materials - Test methods for resistance to radiation, high temperature, humidity, fire and simulated weathering
    • ISO 4892-1
      • Plastics - Methods of exposure to laboratory light sources - Part 1: General guidance
    • ISO 4892-2
      • Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources
    • JASO M346
      • Light-exposure test method by xenon-arc lamp for automotive interior part
    • JASO M351
      • Automotive parts - Accelerated weathering testing method by xenon-arc lamp for exterior parts
    • JIS B 7754
      • Light-exposure and light-and-water-exposure apparatus(xenon arc lamp type)
    • JIS D 0205
      • Test Method of Weatherability for Automotive Parts
    • MIL-STD 810F
      • Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.4: Solar radiation (Sunshine)
    • MIL-STD 810G
      • Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.5: Solar radiation (Sunshine)
    • Peugeot Citroen (PSA) D27 1389
      • Paint Coatings Rubbers and Plastics - Artificial Ageing by Weather-Ometer
    • Peugeot Citroen (PSA) D47 1431
      • Materials and Parts in the Passenger Compartment Appearance Behaviour to Artificial Light at High and Mean Temperatures
    • Renault D27 1911
      • Rubber and Plastic Paint Coatings - Artificial Ageing by Weather Ometer
    • Renault D47 1431
      • Materials and Passenger Compartment Parts Behaviour of the Appearance to Artificial Light at High and Medium Temperatures
    • SAE J1885
      • Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Water Cooled Xenon-Arc Apparatus
    • SAE J1960
      • Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Water-Cooled Xenon Arc Apparatus
    • SAE J2412
      • Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus
    • SAE J2413
      • Protocol To Verify Performance of New Xenon Arc Test Apparatus
    • SAE J2527
      • Performance Based Standard for Accelerated Exposure of Automotive Exterior Materials Using A Controlled Irradiance Xenon-Arc Apparatus
    • VDA 621-429
      • Tests for automotive coatings - Weathering test for Colorfastness
    • VDA 621-430
      • Tests for automotive coatings - Test for resistance to cracking of 2 layer metallic clear coats
    • VDA 75202
      • Automotive interior materials - Colorfastness and ageing test against light at high temperatures: Xenon arc
    • VW PV 1303
      • Non-metallic materials - Lightfastness test for interior parts
    • VW PV 3929
      • Non-Metallic Materials - Weather Ageing in Dry, Hot Climate
    • VW PV 3930
      • Non-Metallic Materials - Weathering in Moist, Hot Climate

  • Downloads +


  • Applications +


  • Videos +

  • Recorded Online Seminars +


    Xenon-Arc Technology and Application – Atlas Online Seminar


    Xenon-arc and Fluorescent/UV - Comparison and Applications - Atlas Online Seminar


    Setups for Common Weathering Tests - Atlas Online Seminar


    Different Xenon-arc Weathering Instruments – Applications and Limitations - Atlas Online Seminar
