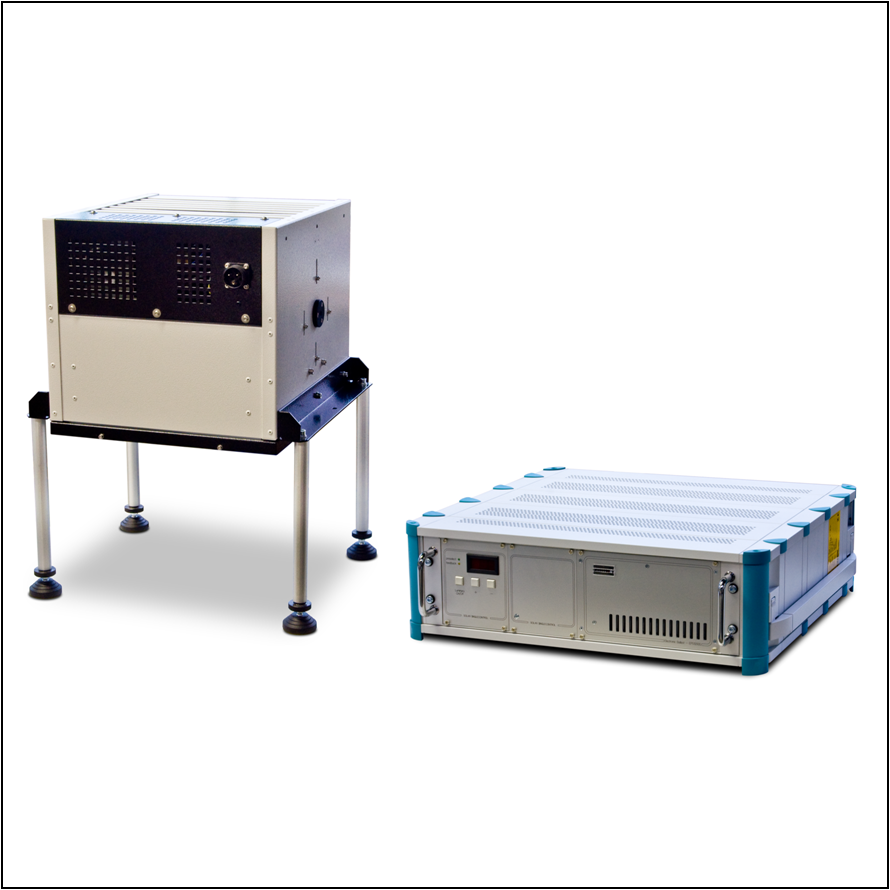

Atlas SolarTest 1200 is a small benchtop solar simulator designed for irradiating small specimens. Very popular in the PV-industry; for example, research studies of PV solar cells.

Overview +

The SolarTest 1200 is a small benchtop test unit to simulate global radiation of AM 1.5. It can irradiate an exposed area of either 150 mm x 150 mm with a uniformity of ±3 % up to 200 mm x 200 mm area with a uniformity of ±5 %.
Features +
- 1200 W benchtop solar simulator AM 1.5
- Global radiation similar to CIE 85 (Table 4)
- Radiation source: filtered metal halide global lamp
- Irradiance 1,050 W/m² • 290-3,000 nm at a distance of 340 mm
- Irradiance uniformity ±3 % on an area 150 mm x 150 mm
Technical Information +

Radiation source:

MHG 1200 W lamp, Borosilicate ODF outdoor daylight filter

Lamp power:

1,200 W (nominal), square wave

Colour temperature:

5,600 K (±150 K)

Average lifetime:

750 h / 1,500 ignitions

Filter system:

Borosilicate daylight filter, cut-on <290 nm

Uniformity:

150 mm x 150 mm, ≤ ±3 %
200 mm x 200 mm, ≤ ±5 %

Irradiance:

Approx. 1,050 W/m² at a distance of 340 mm from the lower edge of the luminaire

Spectral distribution:

280 nm – 3,000 nm,
Similar to the Global Radiation
CIE 85 (Table 4)

Dimensions (W x D x H):

450 x 450 x 450 mm

Weight:

8 kg
