Xenotest Beta+

  • Overview +

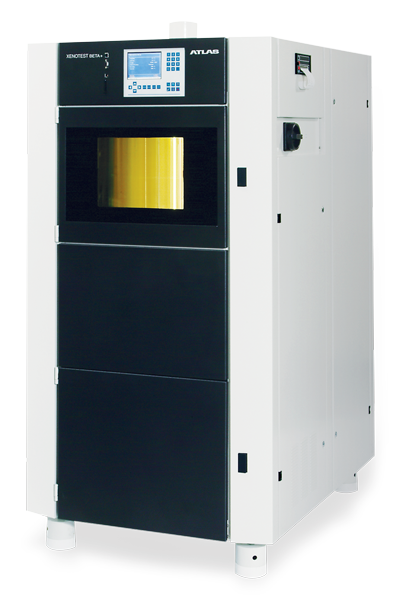

    The Xenotest Beta+ is a premium stand-alone rotating rack xenon instrument with 4000cm2 exposure area. It comes with a complete set of parameter controls. Irradiance and temperature are measured and controlled directly on the sample level using on-rack XENOSENSIV sensor technology. The Beta+ complies with the vast majority of industry standards. Due to its large test chamber and highly reliable performance, it‘s ideal for larger capacities or sample sizes.

  • Features +


    • 3x 2200 W air-cooled Xenon Lamps
    • 4000 cm2 exposure area
    • High-irradiance testing up to 120 W/m2 (2 Sun)
    • Touch screen with colour display to monitor and display test parameters
    • Direct Setting and Control of Irradiance (300-400 nm)
    • Direct Setting and Control of Black Standard Temperature
    • Direct Setting and Control of Chamber Temperature
    • Direct Setting and Control of Relative Humidity
    • Display of Diagnostic Messages
    • Storage for 10 user-defined test methods
    • Pre-programmed international standard test methods
    • Multilingual User Interface
    • Non-aging XENOCHROME filters to simulate outdoor daylight, daylight behind window
    • On-rack XENOSENSIV 300-400 nm for measuring and controlling irradiance (in W/m2) and BST (°C) on sample level
    • Selectable temperature control either by Chamber Temperature (max. 70 °C) or by Dual Control: Chamber Temperature and Black Standard Temperature (up to 130 °C)
    • Fan-controlled temperature difference between Chamber and Black Standard Temperature
    • Ultrasonic humidification system for humidity control
    • Specimen spray system with integrated 60 l water reservoir
    • Outer cylinder made of Special UV glass
    • Switch-off by radiant exposure, light exposure time or total operating time
    • Advanced Auto Start functions
    • Data output via memory card or RS 232 interface
    • Ethernet interface for connection to internal computer network and use of XenoTouch Add-ons 1, 2, and 3 (Remote Control, E-Mail Service, Online Monitoring)

  • Options +


    • XenoCal WST White Standard Thermometer
    • XenoCal BST Black Standard Thermometer
    • XenoCal BB 300-400 Irradiance Sensor
    • XenoCal NB 340 Irradiance Sensor

  • Accessories +


    • Adapter for narrow (45 mm) sample holders
    • Adapter for wide (80 mm) sample holders
    • Sample mounting cards 80 mm x 320 mm (100 pcs.)
    • Set Xenon Burner NXE 2200 (3pcs.)
    • Set of masking plates "Special" 2 segments
    • Set of masking plates "Standard" with aperture width of 9, 18 and 27 mm (16 pcs. each)
    • Spare parts set
    • Special sample holder for blue wool scale (for weathering tests)
    • Special sample holder for blue wool scale (for weathering tests) incl. narrow specimen holder
    • Specimen holder Standard to fit the special adapter
    • Specimen holder set "Special" 2 segments
    • Specimen holder set "Special" 3 segments
    • Specimen holder set Standard for specimens up to 10 mm thick (16 pcs.)
    • XENOCHROME 300 (filter with UV cut-on at 300 nm to simulate outdoor testing)
    • XENOCHROME 320 (filter with UV cut-on at 320 nm to simulate testing behind window glass)

  • Standards +


    The listed standards and specifications may include several alternative testing options. The instrument meets at least one option in any listed standard. Standards are subject to change without notification, which may result in a change in testing technology. Always check the revision status of a standard with the responsible Standards Development Organization. If unsure about instrument compliance, please contact your local sales representative.

    • AATCC TM16-1998
      Colorfastness to Light
    • AATCC TM16-2004
      Colorfastness to Light
    • AATCC TM169
      Weather Resistance of Textiles: Xenon Lamp Exposure
    • ASTM D6695
      Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings
    • ASTM G151
      Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
    • ASTM G155
      Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials
    • GME 60292
      Designation of Colour Fastness and Resistance to Artificial Light
    • GMW 3414
      Test Method for Artificial Weathering of Automotive Interior Trim Materials
    • IEC 60068-2-5
      Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation testing and weathering
    • ISO 105-B02
      Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
    • ISO 105-B04
      Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test
    • ISO 105-B06
      Textiles - Tests for colour fastness - Part B06: Colour fastness and ageing to artificial light at high temperatures: Xenon arc fading lamp test
    • ISO 105-B10
      new standardTextiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation
    • ISO 12040
      Graphic technology - Prints and printing inks - Assessment of light fastness using filtered xenon arc light
    • ISO 16474-2
      Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
    • ISO 3917
      Road vehicles - Safety glazing materials - Test methods for resistance to radiation, high temperature, humidity, fire and simulated weathering
    • ISO 4892-1
      Plastics - Methods of exposure to laboratory light sources - Part 1: General guidance
    • ISO 4892-2
      Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources
    • JASO M346
      Light-exposure test method by xenon-arc lamp for automotive interior part
    • MIL-STD 810F
      Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.4: Solar radiation (Sunshine)
    • RAL-GZ 716
      Plastic Windows - Quality Control
    • SAE J2019
      Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Air-Cooled Xenon-Arc Apparatus
    • SAE J2212
      Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Air-Cooled Xenon-Arc Apparatus
    • VDA 621-429
      Tests for automotive coatings - Weathering test for colour fastness
    • VDA 621-430
      Tests for automotive coatings - Test for resistance to cracking of 2 layer metallic clear coats
    • VDA 75202
      Automotive interior materials - Colorfastness and ageing test against light at high temperatures: Xenon arc
    • VW PV 1303
      Non-metallic materials - Lightfastness test for interior parts
    • VW PV 3929
      Non-Metallic Materials - Weather Ageing in Dry, Hot Climate
    • VW PV 3930
      Non-Metallic Materials - Weathering in Moist, Hot Climate
