Ci5000E Weather-Ometer

  • Overview +


    Ci5000e

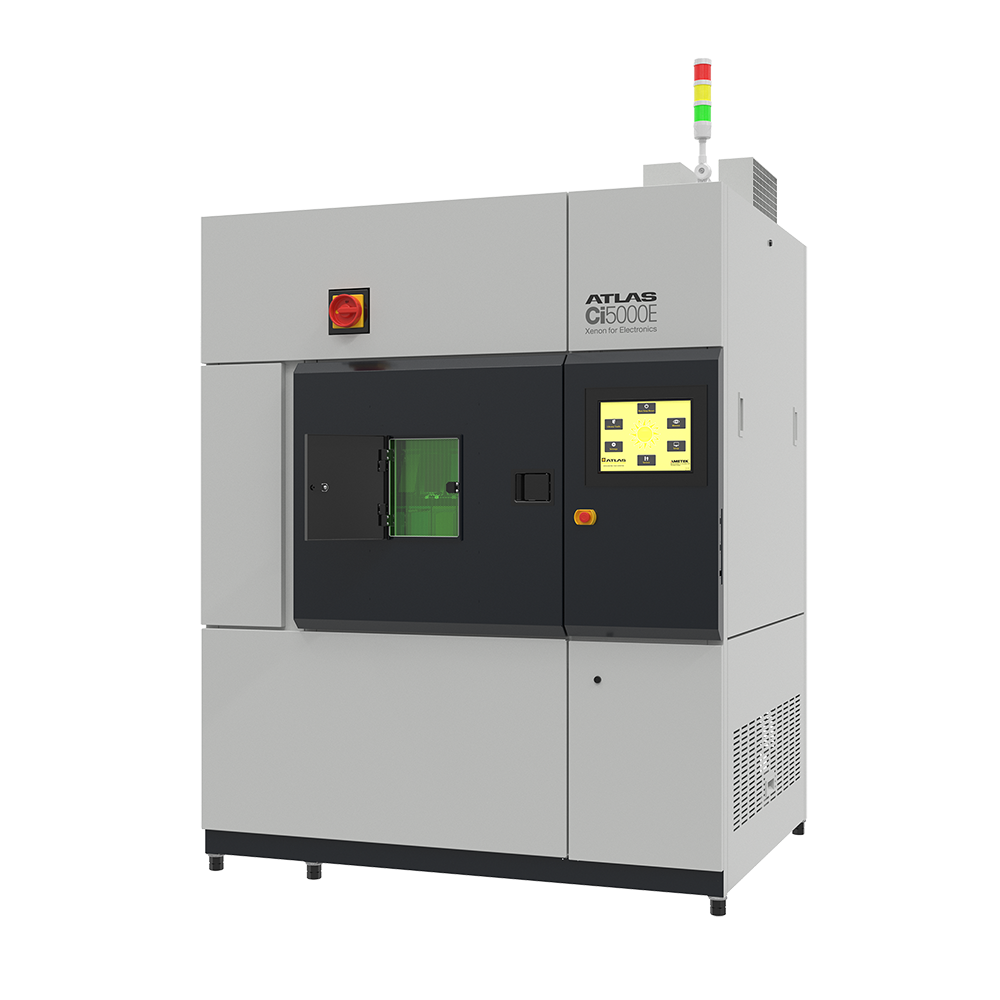

    The Atlas Ci5000E Weather-Ometer is an advanced xenon-arc accelerated weathering instrument engineered to meet the evolving accelerated weathering requirements of the electronics industry. It is specifically designed to support the testing of powered electronic devices and components through a suite of integrated innovations. These include a cable-access porthole and slip-ring-enabled on-rack power delivery, enabling continuous operation under test conditions. An oscillating specimen rack enhances irradiance and temperature uniformity while simplifying cable management, and an optimized air baffle design improves chamber airflow for more consistent environmental control.

  • Features +


    • On-rack electrical power via slip-ring
    • Cable management via chamber porthole
    • Oscillating rack for improved uniformity
    • Enhanced airflow with redesigned air baffle
    • Best-in-class irradiance and temperature performance
    • Electronics-focused pre-programmed test-list
    • Optional window cover for IP protection
    • WXViewTM II compatible

  • Options +


    • Display Rack: An adjustable rack designed for testing electronic displays
    • Dual Black Panel Temperature (BPT) and Black Standard Temperature (BST) Measurement/Control including uninsulated BPT and BST sensors
    • Monitoring of second wavelength: 340 nm, 420 nm, 300-400 nm
    • WXView II Data Acquisition System: Web-based application to allow users to securely access instruments connected to their company network, download archived files, and other functionality.

  • Accessories +


    • XenoCal® irradiance calibration device for independent irradiance calibration and measurement at the sample plane
    • Auxiliary filter lantern for meeting special automotive interior and textile test requirements
    • LiquiAirTM self contained xenon lamp cooling system (top or wall mount available)
    • Leg Extensions (6 legs: elevates unit 15 cm)
    • Lockable latch for chamber door

  • Software +


    Legacy Ci software provides reliable instrument control, test method programming, sample management, and data acquisition for consistent, repeatable weathering results and streamlined lab operation.

    XenoSoft is an analytical software for the evaluation and graphical display of measurements performed with Atlas XenoCal calibration sensors.

    WXView II is a web-based data acquisition program that provides remote access to live and archived test data from your laboratory instruments.

  • Standards +


    The listed standards and specifications may include several alternative testing options. The instrument meets at least one option in any listed standard. Standards are subject to change without notification, which may result in a change in testing technology. Always check the revision status of a standard with the responsible Standards Development Organization. If unsure about instrument compliance, please contact your local sales representative

    • ASTM D7869 6 Standard Practice for Xenon Arc Exposure Test with Enhanced Light and Water Exposure for Transportation Coatings*
    • ASTM G151 Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources*
    • ASTM G155 Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials*
    • FLTM BO 116-01 Resistance to interior weathering
    • GB/T 8427 Textiles - Tests for color fastness - Color fastness to artificial light: Xenon arc fading lamp test
    • GMW 3414 Test Method for Artificial Weathering of Automotive Interior Trim Materials
    • GMW 14162 Colorfastness to Artificial Weathering
    • IEC 60068-2-5 Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation testing and weathering*
    • IEC 62788-7-2 (A3) Measurement procedures for materials used in photovoltaic modules - Part 7-2: Environmental exposures - Accelerated weathering tests of polymeric materials
    • ISO 16474-1 Paints and varnishes - Methods of exposure to laboratory light sources - Part 1: General guidance*
    • ISO 16474-2 Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps*
    • ISO 105-B02 Textiles - Tests for Colorfastness - Part B02: Colorfastness to artificial light: Xenon arc fading lamp test
    • ISO 105-B04 Textiles - Tests for Colorfastness - Part B04: Colorfastness to weathering: Xenon arc test*
    • ISO 105-B06 Textiles - Tests for Colorfastness - Part B06: Colorfastness and ageing to artificial light at high temperatures: Xenon arc fading lamp test
    • JASO M346 Light-exposure test method by xenon-arc lamp for automotive interior part
    • JASO M351 Automotive parts - Accelerated weathering testing method by xenon-arc lamp for exterior parts*
    • MIL-STD 810H Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.5: Solar radiation (Sunshine)
    • SAE J2412 Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus
    • SAE J2527 Performance Based Standard for Accelerated Exposure of Automotive Exterior Materials Using A Controlled Irradiance Xenon-Arc Apparatus*
    *Methods must be modified to run without water spray.
